Bass resonance tool, stand-alone
i-VOG
The VOG circuit in a quarter-rack box, with an instrument input.
The i-VOG is identical to the VOG, but it's a standalone version – no rack required. Oh, but it does add a hi quality hi Z instrument in, which adds to its creative capability.
THE i-VOG Analog bass resonance tool
The VOG was originally designed to capture the chest resonance of vocalists or voice over artists, enabling them to still have a proximity type effect without having to be so close to the mic, hence the name, VOG, or Voice of God. However, when I heard it on kick drum and bass, it became clear this would be the go to device to make these instruments sound huge.
The I-VOG lets users sweep a sharp peak resonance from 20 to 300 Hz, while anything below the peak is rolled off at a steep -24dB per octave. This lets users focus on the low end they want, while eliminating low-end mush and unnecessary woofer excursion.
A subharmonic can be the focus, or the fundamental, or upper harmonics. On a kick drum, for example, the overall effect of turning VOG’s frequency knob sounds like someone is tightening or loosening the drumhead. In a mix, VOG allows users to place the bass spectrum instruments so they do not interfere or get in the way of each other.
- Stand-alone
- Separate audiophile grade power supply

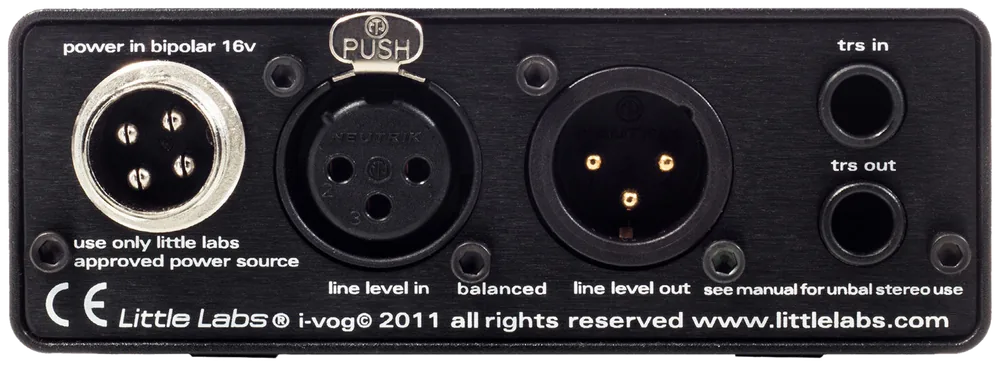

- XLR & TRS I/0
- High Z Instrument input
- Fully differential circuit topology
- Run mono balanced or stereo unbalanced
- Headroom!
- +28dB max level out mono
- +22dB max level out stereo
- This video is for the UA plug in of the VOG, but the hardware is identical, and this was well produced.
In this 5-Minute UAD Tip, learn how to use the UAD Little Labs Voice Of God plug-in to enhance an 808 bass part as well as beef up a thin-sounding kick drum track.
- format
- Quarter rack, 1U. Four fit across.
- built
- Los Angeles, by Little Labs
- documentation
- 2 PDFs on this page
- how to buy
- Through a stocking dealer
Manuals and tear sheets
