Instrument distro and DI
PCP
One instrument, three amps, every path isolated.
A one-in three-out guitar splitter (five when using the mult and line driver) featuring transformer isolated guitar level/impedance outputs with phase reverse, ground lift, and level adjust on each output.
what it does
The PCP is really amazing, –it does a lot, but what I really dig is it allows me to use my vintage effects on everything. It is my ultimate studio tool.
The PCP I use at every stage of recording; it is the best piece of gear I own (except for my ‘72 black Les Paul Custom).
The PCP contains
- An audiophile direct box and guitar cable line driver designed with the same circuit topology as the Little Labs Multi Z DI.
- Three professional-level to guitar impedance-level interfaces for re-amping.
- format
- Half rack, 2U.
- built
- Los Angeles, by Little Labs
- documentation
- 2 PDFs on this page
- how to buy
- Through a stocking dealer
Manuals and tear sheets

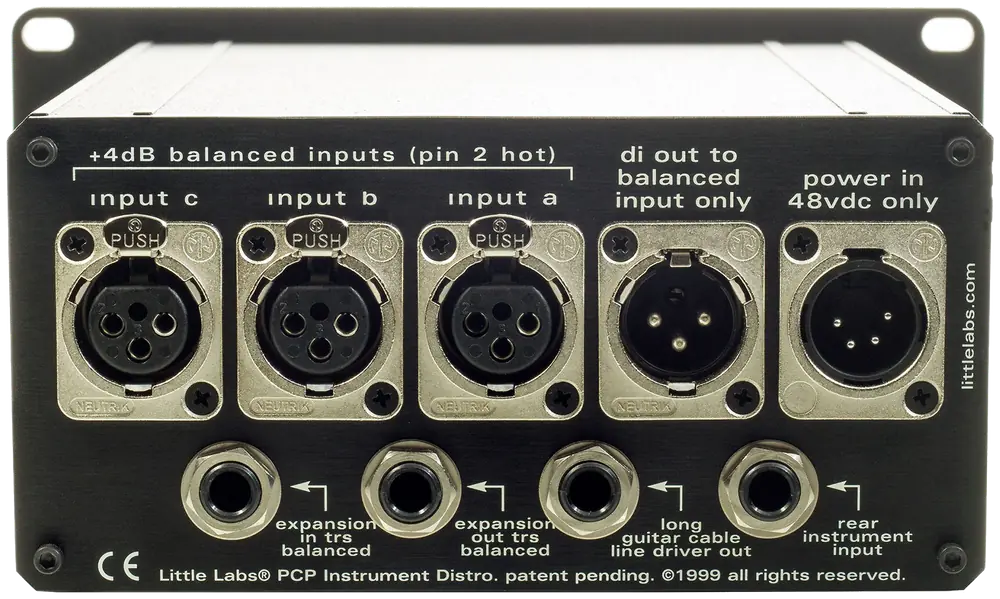

the other sides

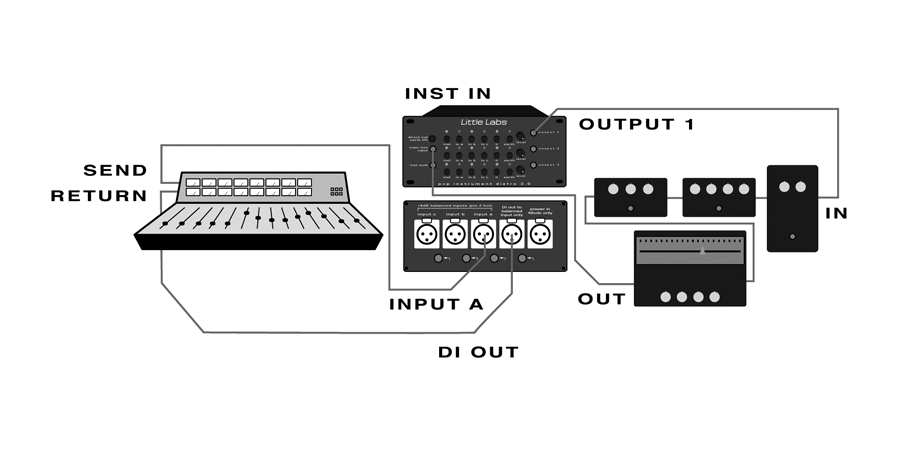

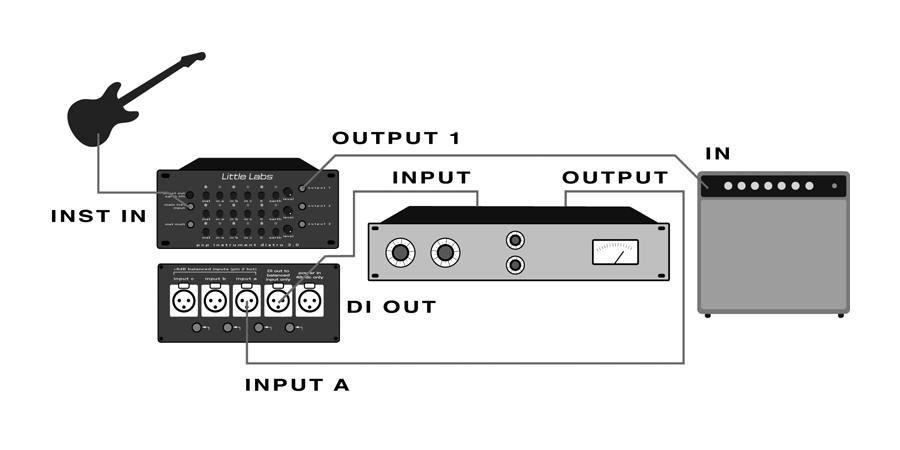

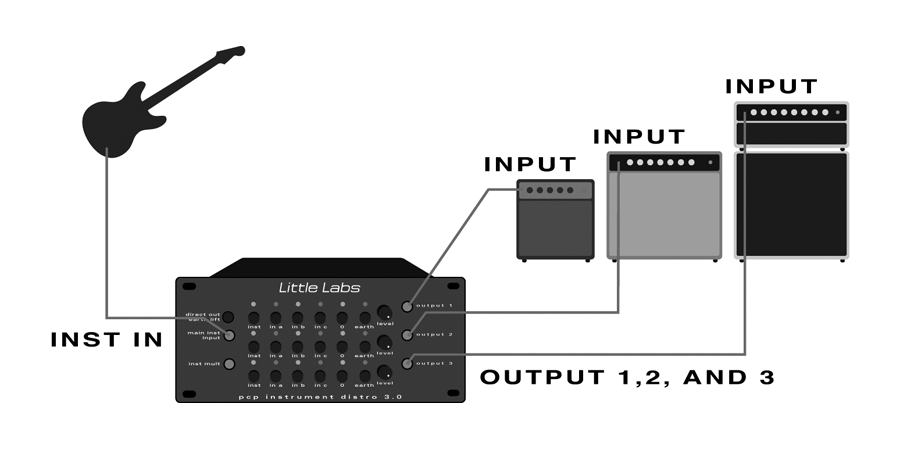

how it patches in
Where it sits in the chain
Little Labs draws these by hand. They are kept on a white ground here because that is how they read.
